XLPower

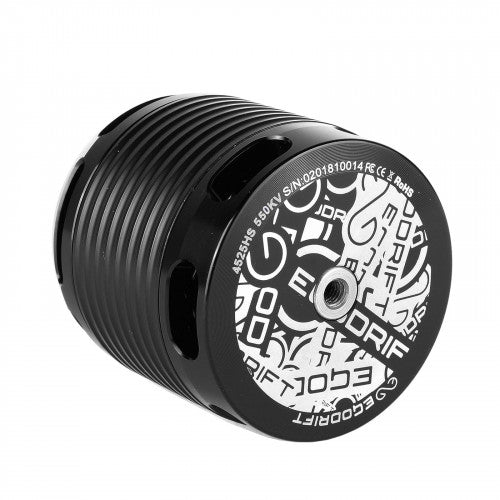

EGODRIFT TENGU 4525HS / 550KV (12-14S)
EGODRIFT TENGU 4525HS / 550KV (12-14S)
Regular price
$299.99
Regular price
Sale price
$299.99
Unit price
/
per
Couldn't load pickup availability
- Manufacturer: EGODRIFT
- Stator size: 4525
- Motor configuration: 12N10P
- Motor weight: 460g
- Base Colour: Black
- Wire colour: Copper
- Motor wire type: High temperature copper wire
- Motor wire: 1.3mm
- Motor shaft: Hardened Steel
- Shaft diameter: 6.0 mm
- LiPo cells: 12S, 14S
- Motor kV: 550 kV
- Stator diameter: 45 mm
- Stator height: 25 mm
- Stator lamination: 0.15 mm (+)

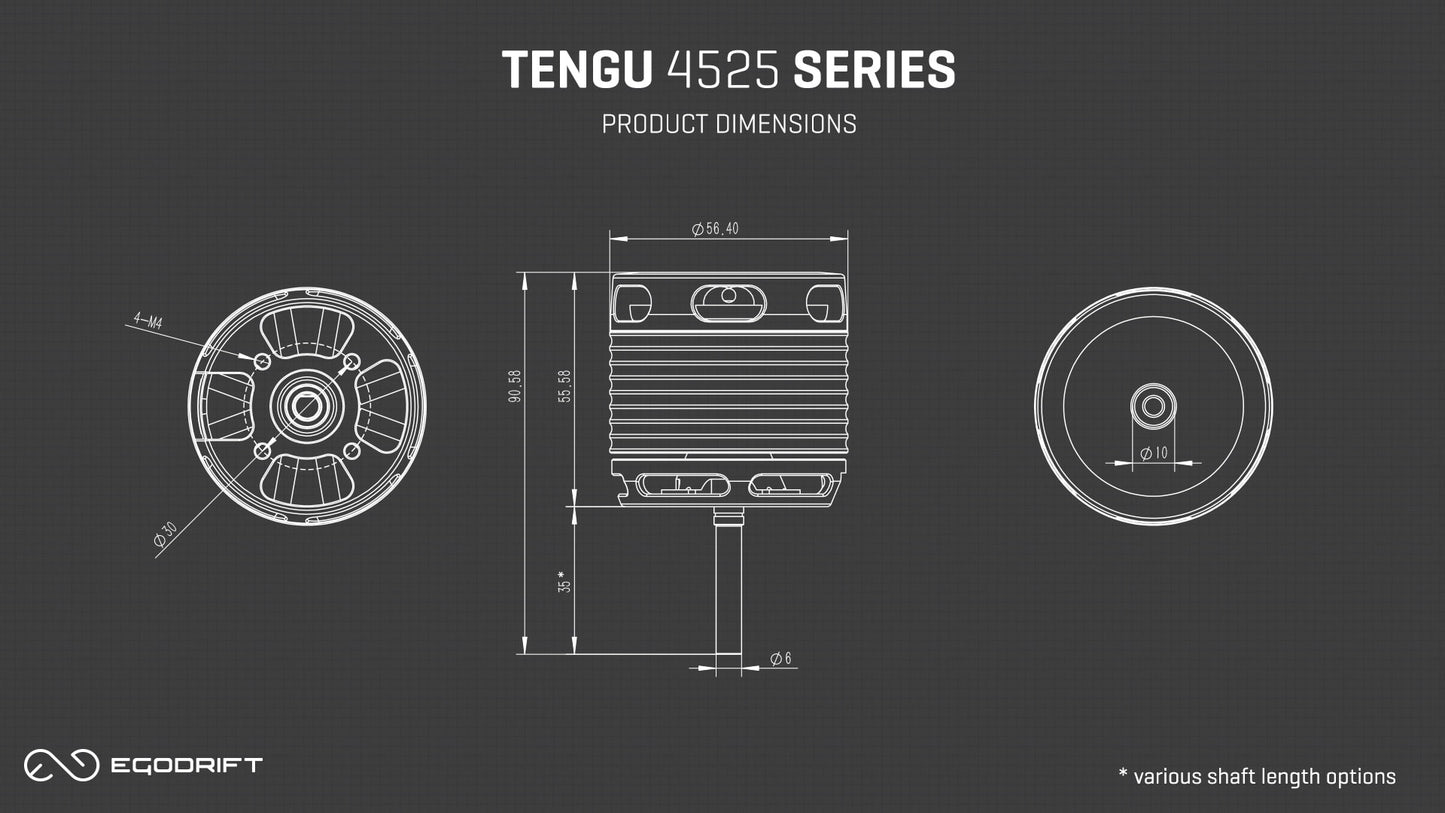

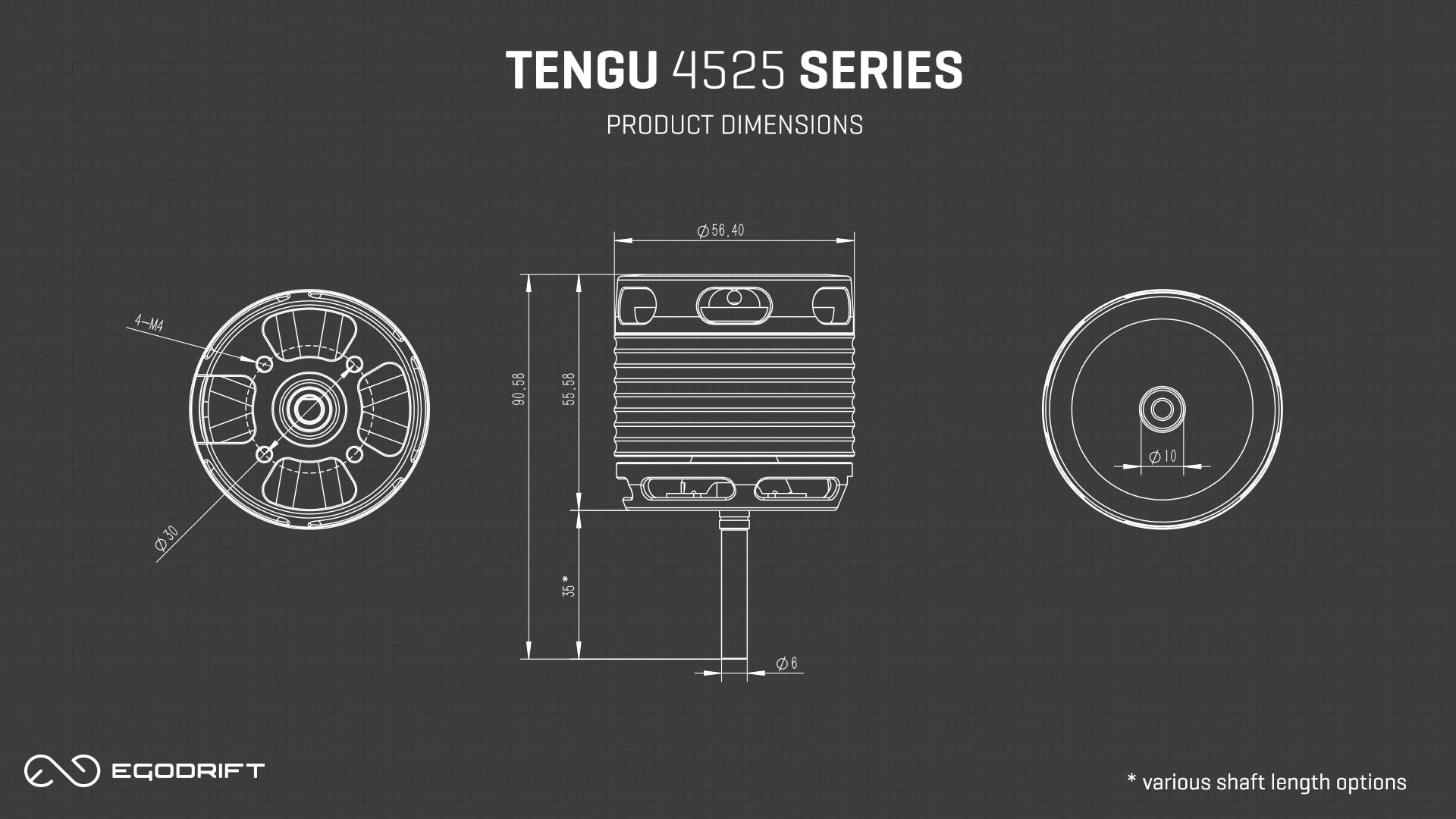

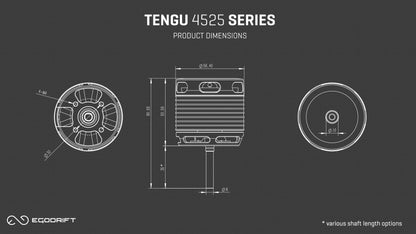

- Body Length: 55.58mm (2.19 inch)
- Diameter: 56.4mm (2.22 inch)
- Screw hole diameter: 4,0 mm
- Motor hole pattern: 30mm
- Idle current: 3.5A
- Maximum Current: 120A (Peak: 220A / 2 seconds)
- Maximum Power: 5760W (Peak: 10560W / 2 seconds)
- Internal resistance: 11.5 mOhm
- Connection: Wire / Gold plated plugs
- Designer: Yutao Zou
