XLPower
EGODRIFT TENGU 4530HT / 550KV (12-14S)
EGODRIFT TENGU 4530HT / 550KV (12-14S)
Regular price
$399.99
Regular price
Sale price
$399.99
Unit price
/
per
Couldn't load pickup availability

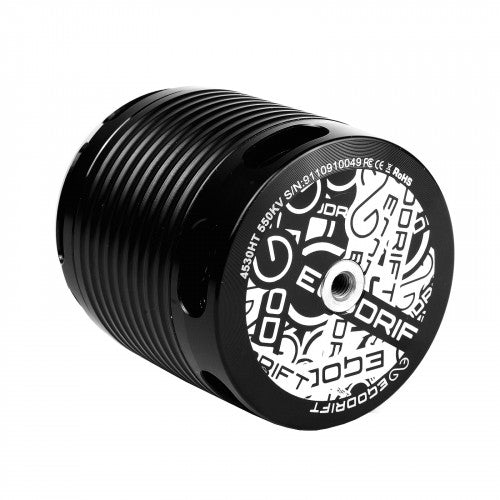

Hand-wound EGODRIFT Tengu 4530 HT (High Torque) Series 550kV brushless motor for 700-800mm class helicopters, such as the XLPower Spectre, SAB Goblin 700-770, Quest Impaction, Align T-Rex 700-800, Mikado Logo 700, or Gaui 700.
- Manufacturer: EGODRIFT
- Stator size: 4530
- Motor configuration: 12N10P
- Motor weight: 525g (17.25oz)
- Base Colour: Black
- Wire colour: Copper
- Motor wire type: High temperature copper wire
- Motor wire: 1.4mm
- Motor shaft: Hardened Steel
- Shaft diameter: 6.0 mm
- LiPo cells: 12S, 14S
- Motor kV: 550 kV
- Stator diameter: 45 mm
- Stator height: 30 mm
- Stator lamination: 0.15 mm (+)

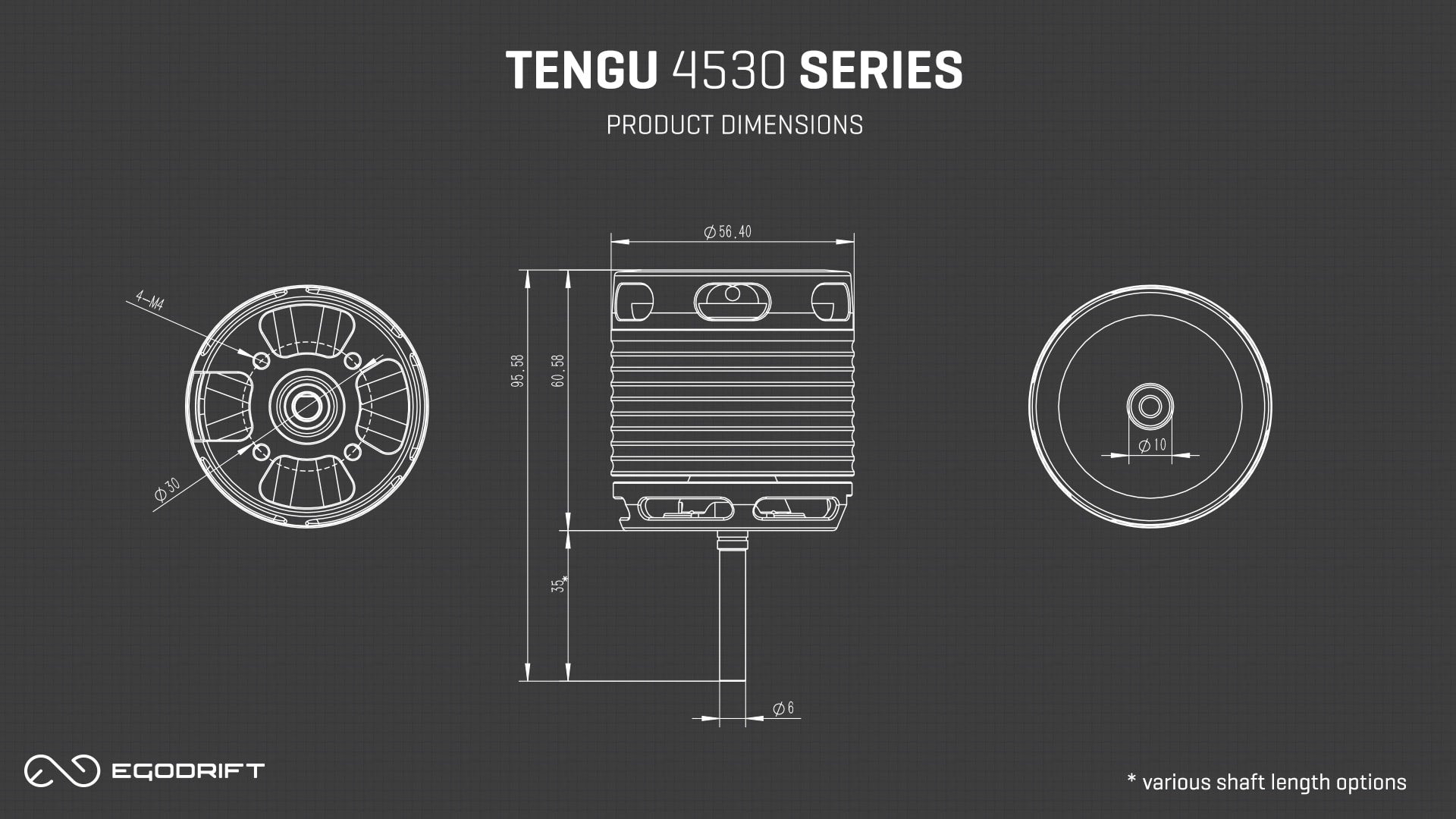

- Body Length: 60.58mm (2.39 inch)
- Diameter: 56.40 mm (2.22 inch)
- Screw hole diameter: 4,0 mm
- Motor hole pattern: 30mm
- Idle current: 4.8A
- Maximum Current: 145A (Peak: 265A / 2 seconds)
- Maximum Power: 6960W (Peak: 13300W / 2 seconds)
- Internal resistance: 9.9 mOhm
- Connection: Wire / Gold plated plugs
- Designer: Yutao Zou
